20x30 VFX Frame

Division VFX Frames are vertically-mounted modular frames built for telehandler use in blue screen, green screen, and negative fill applications. Designed to mount directly to a telehandler carriage with forks removed, these frames offer a stable, mobile surface for large-scale VFX rags on stage or location.

Each frame uses 9″ truss at the telehandler carriage for strength and stability, while the outer structure and vertical ribs are built with Mx|66| for reduced weight and flexible rigging. VFX Frames mount via 9" Modulus-X blocks and Division’s KingPin Adaptor ModParts, locking safely into the carriage.

Ideal for setups requiring a clean vertical plane that can be skinned, moved, and adjusted quickly — whether for keying or passive flagging.

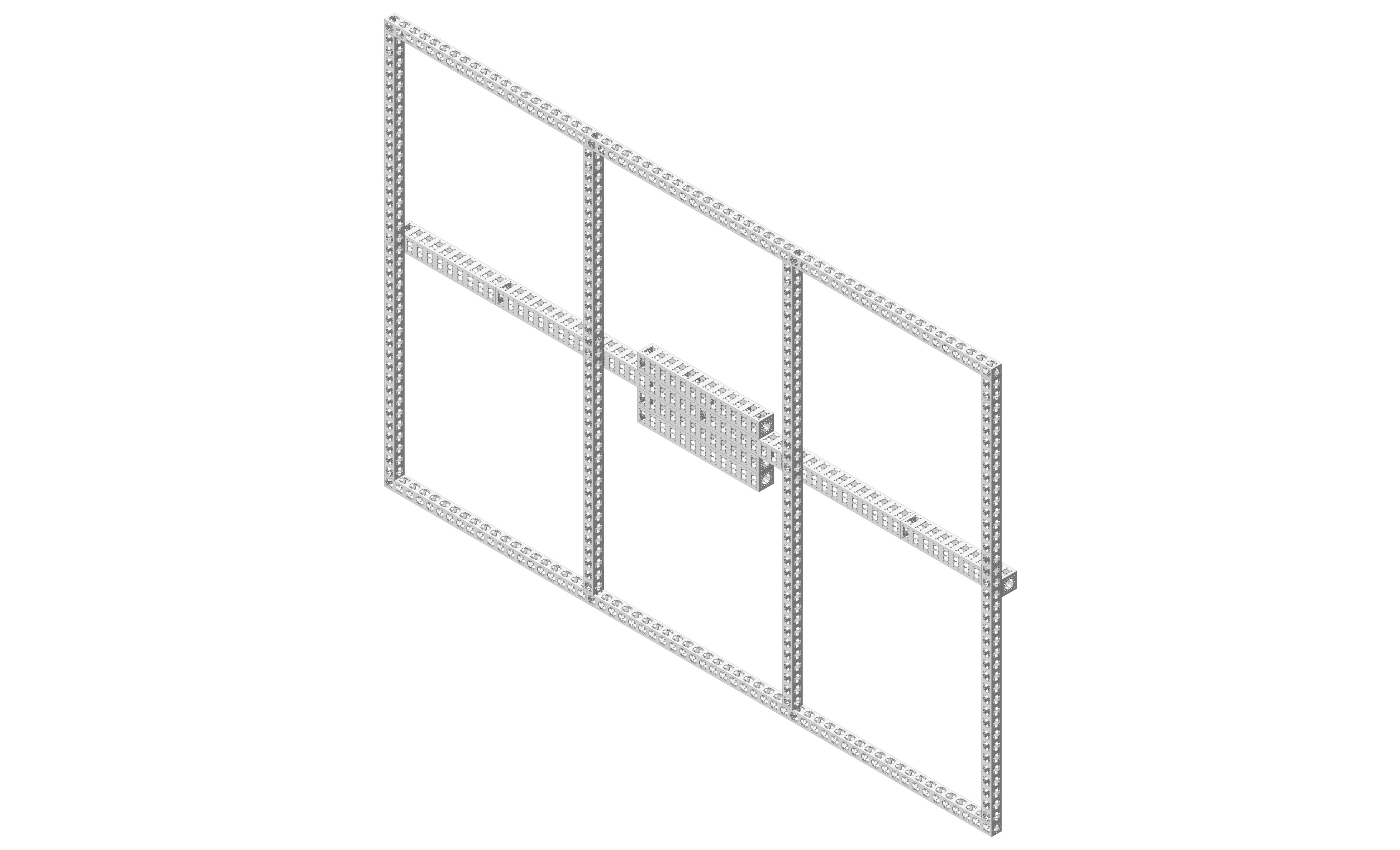

A mid-size frame with added horizontal coverage. The 20×30 VFX Frame offers a balanced footprint for extended coverage, while keeping the length manageable.

• Mx|99| truss at carriage and spine

• Mx|66| truss for frame perimeter and vertical ribs

• Safeties to the carriage kingpin via Division KingPin Adaptor and 9″ Modulus-X blocks

• Use as digital key or skinned for solid overhead applications
