20x40 VFX Frame

Division VFX Frames are vertically-mounted modular frames built for telehandler use in blue screen, green screen, and negative fill applications. Designed to mount directly to a telehandler carriage with forks removed, these frames offer a stable, mobile surface for large-scale VFX rags on stage or location.

Each frame uses 9″ truss at the telehandler carriage for strength and stability, while the outer structure and vertical ribs are built with Mx|66| for reduced weight and flexible rigging. VFX Frames mount via 9" Modulus-X blocks and Division’s KingPin Adaptor ModParts, locking safely into the carriage.

Ideal for setups requiring a clean vertical plane that can be skinned, moved, and adjusted quickly — whether for keying or passive flagging.

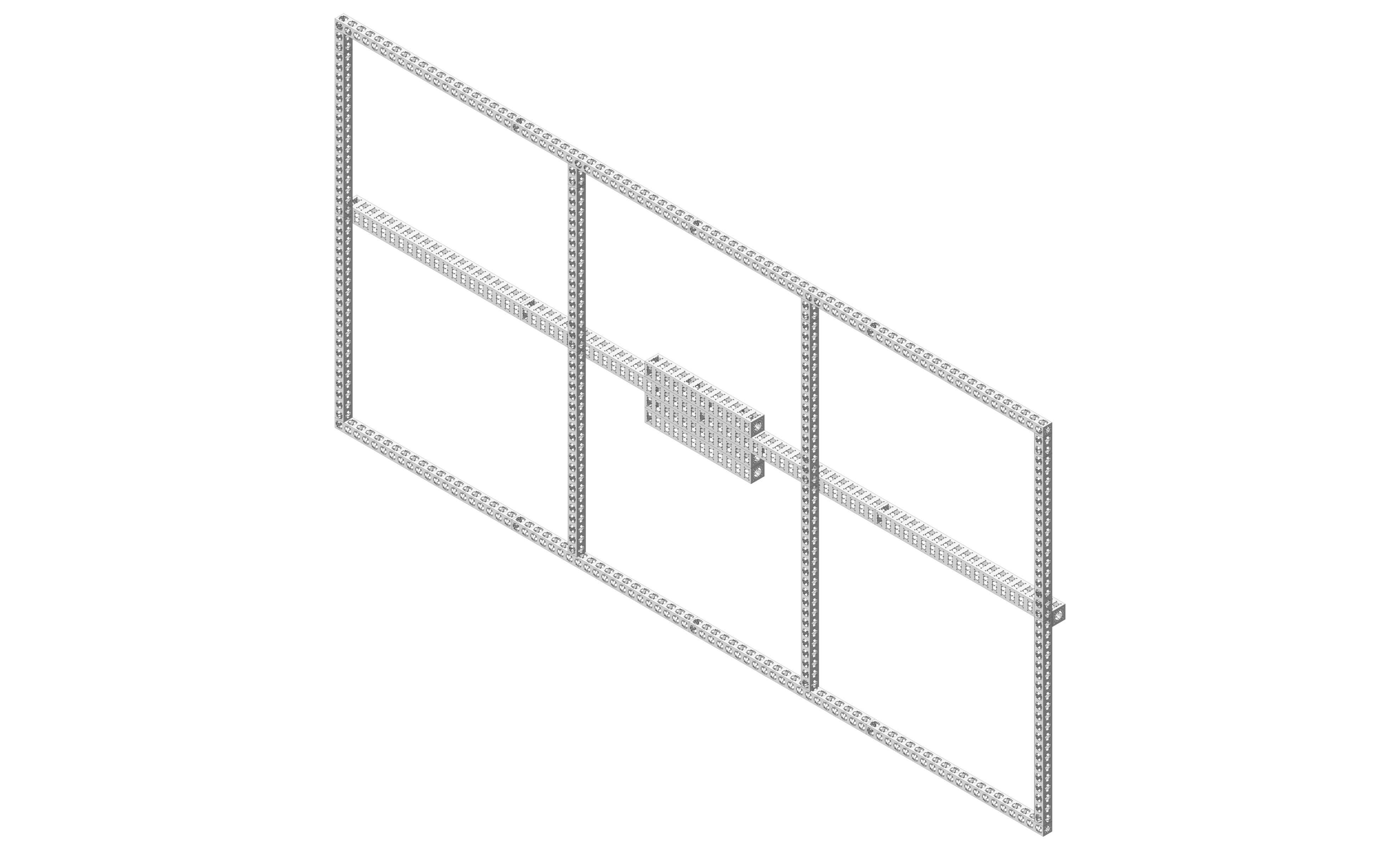

Maximum horizontal surface for the most coverage you can get on a single lift. The 20×40 VFX Frame maintains rigidity while keeping total weight lift-safe.

• Mx|99| truss at carriage and spine

• Mx|66| truss for frame perimeter and vertical ribs

• Safeties to the carriage kingpin via Division KingPin Adaptor and 9″ Modulus-X blocks

• Ideal for large-scale VFX work or as a mobile blackout wall
