3' Mx|99|

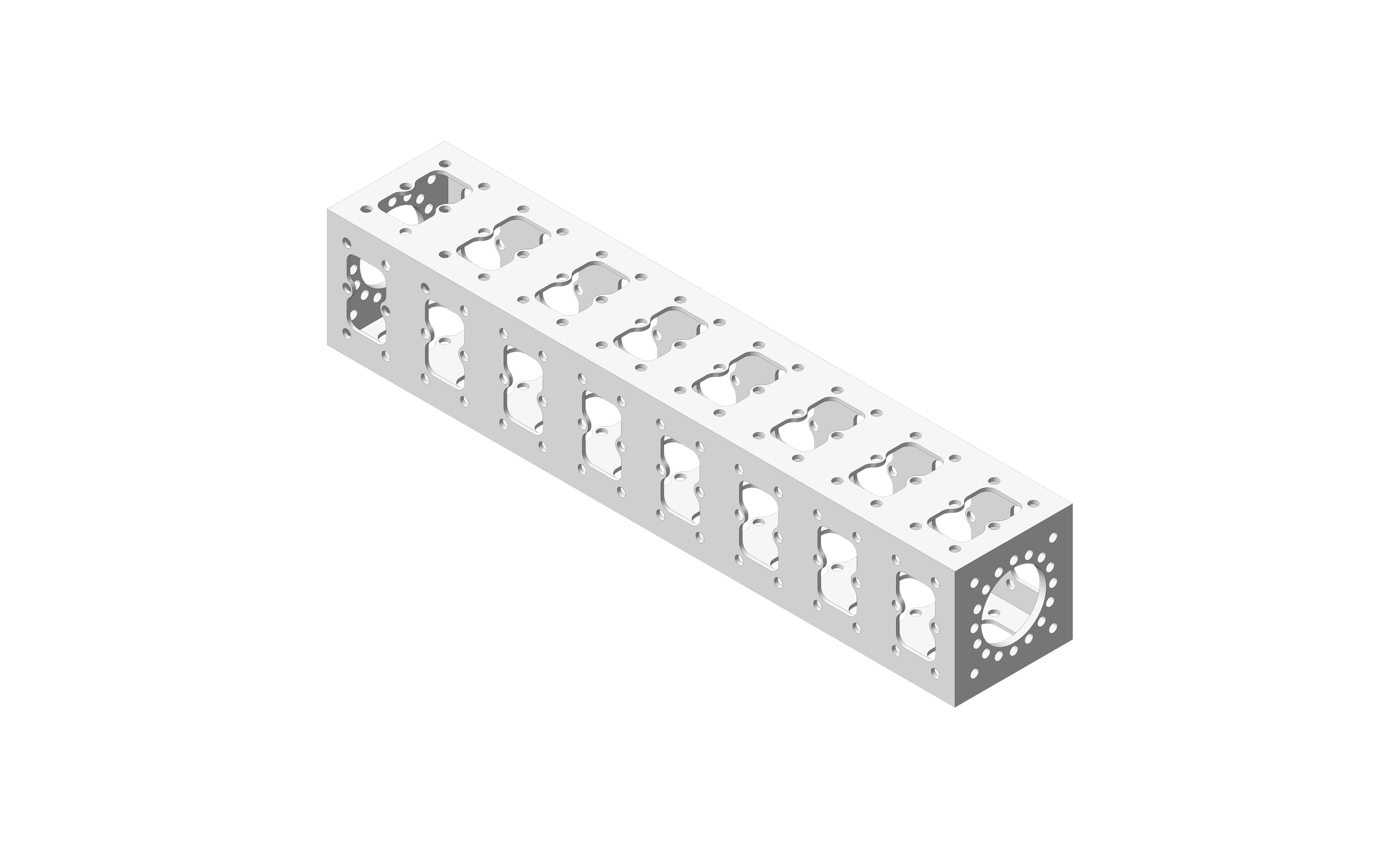

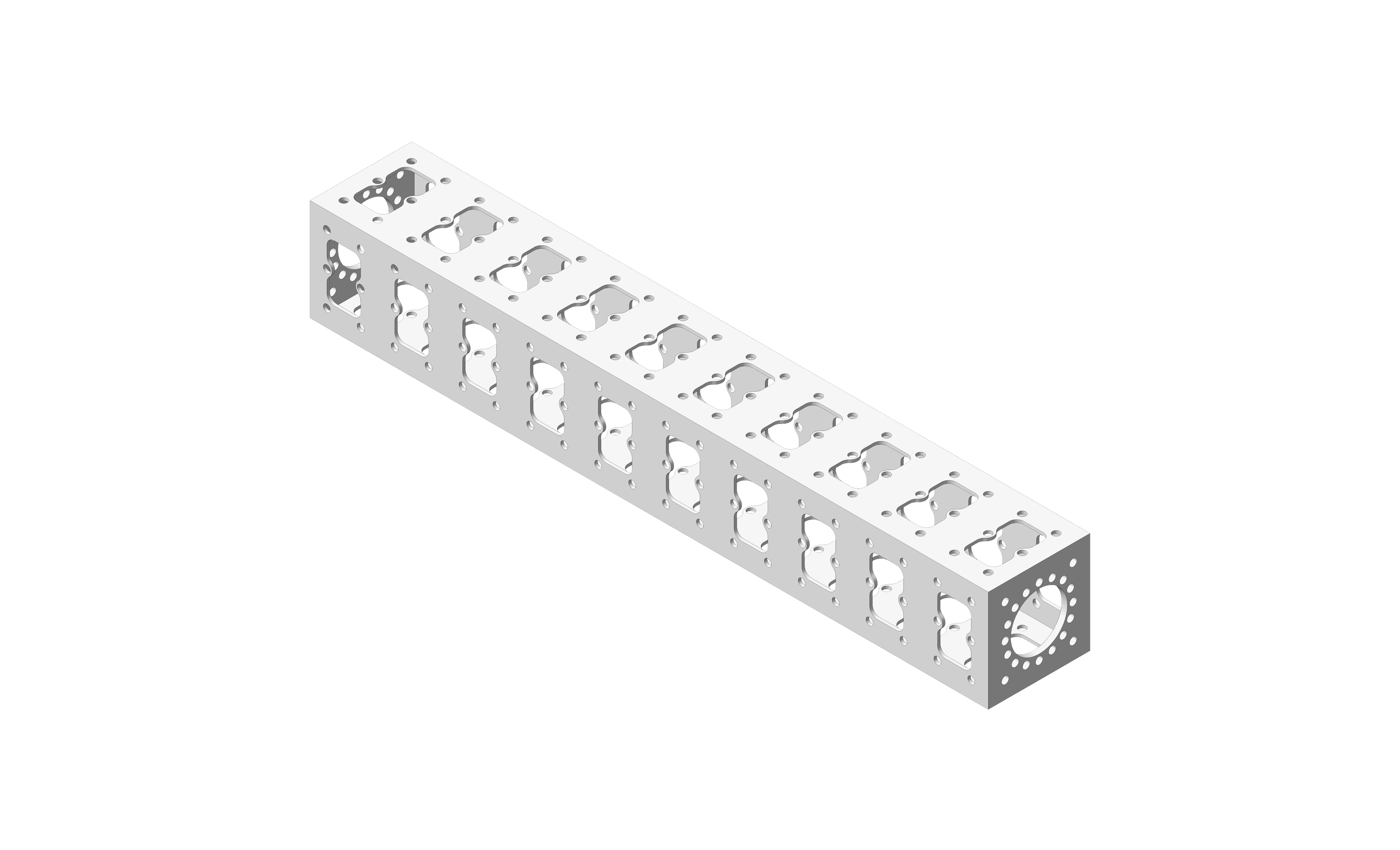

This 3′ section of Mx|99| truss is part of our 9″ modular aluminum system, designed for larger spans, heavier loads, and more demanding builds across film, live events, and brand experiences. With greater capacity than our 6″ system, Mx|99| is ideal for structural applications that call for serious support without added complexity.

Each piece features off-axis bolt patterns every 22.5°, 3″ on-center hole spacing, and ½″ end caps designed for strong connections without the need for extra steel plates or adapters. Whether you’re flying heavy setups, spanning long distances, or building complex structures, Mx|99| gives you precision and reliability at scale.

Load Performance:
FEA-verified and validated through real-world testing — including center-point loads up to 15,250 lb at 5 ft spans, and reliable performance up to 40 ft unsupported.

Common Uses:

• Long-span overheads, bridges, and platforms

• High-load lighting grids or scenic support structures

• Structural frames for stage builds, activations, or VFX work

• Modular truss towers, booths, and suspended builds




Works With:
All Modulus-X truss and Division ModParts — including bearings, rigging plates, adapters, and trolleys.
